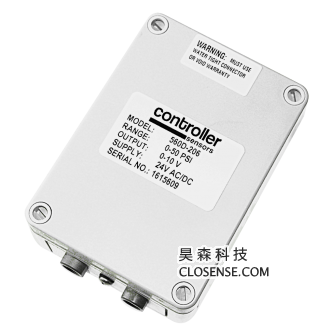

Series 560 Wet-to-Wet Pressure Transducer
Features and Applications
- All wetted parts made of Series 300 stainless steel
- Provided in a rugged NEMA 4 enclosure
- Perfect for harsh applications such as chillers, boilers and refrigerant systems
- Available in both gauge and differential versions
- Customizable for any pressure range from 0/20PSI to 0/500PSI
- One of the most cost-effective wet-to-wet transducers on the market
Specifications
| Accuracy | +/-0.5% FSO |
| Stability: | +/-0.5% FSO/yr |
| Thermal Effects: | +/-0.02% FSO/°c |
| Overpressure: | 2 times FSP or 700PSI whichever is less |
| FSO Pressure Range: | 0/20psi up to 0/500PSI |
| Compensated Range: | 10° to 50°C |
| Media: | Any media, wet or dry, compatible with series 300 stainless steel |
| Operating Humidity: | NEMA 4 levels with proper conduit connections |
| Operating Temp: | -25° to 70°C |
| Input Supply**: | 24VDC/24VAC |
| Supply Current: | <35mA |
| Load Resistance: | 2KΩ minimum on voltage out, 700Ω, maximum loop resistance on 4-20mA output |
| Output Signal: | 0-5VDC, 0-10VDC or 4-20mA |
| Electrical Connections: | Internal screw terminals |
| Pressure Connections: | 1/8″ NPT Female |
| Enclosure: | NEMA 4 enclosure |
| Dimensions: | Approx. 5.12″ x 3.70″ x 2.25″ (13.00cm x 9.40cm x 5.72cm) |
* Includes non-linearity hysteresis and non-repeatability at a fixed temperature

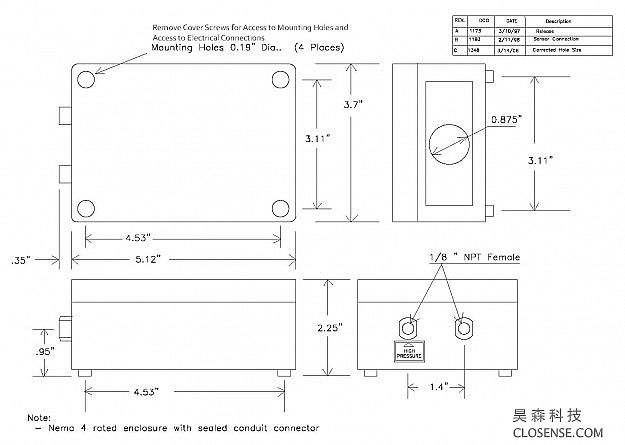

Package Drawing
How to Order
A typical order number consists of the model number, pressure range, pressure unit, output and mounting connection.
| Model | Type | Output Signal | FSO Pressure Range | Calibration Pressure |
|---|---|---|---|---|
| 560 | D = Differential or Gage | 0-5VDC | 4…..20PSI to 50PSI | Customer Designated exact FSO |
| 0-10VDC | 6…..50PSI to 100PSI | |||
| 4-20mA | 7…..100PSI to 500PSI | |||
Example: 560D 4-20mA Cal Pressure = 0-30 PSI (Model number 560, differential type unit, output signal of 4-20mA, pressure range up to 500PSI, calibrated to 0-30PSI FSO).
