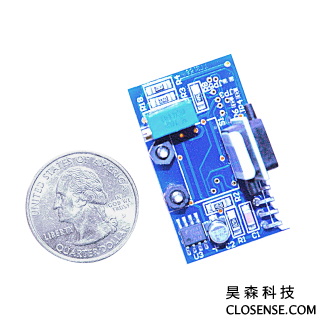

美国controller 855系列板贴装压力传感器

简单介绍

* Includes non-linearity hysteresis and non-repeatability at a fixed temperature,美国controller 855系列板贴装压力传感器*18-24VDC input required for 1-10VDC output*

美国controller 855系列板贴装压力传感器的详细介绍

 美国controller 855系列板贴装压力传感器,

Includes non-linearity hysteresis and non-repeatability at a fixed temperature



855

Specifications

Accuracy*: <+/-1.0% FSO
Stability: +/0.5% FSO/yr
Thermal Effects: +/-0.075% FSO/°C
Overpressure: 1-10”WC = 100”WC
11-20”WC = 10x rated pressure
21-30”WC = 5x rated pressure
Over 30”WC = 45 PSI
FSO Pressure Range: 0/0.25”WC up to 0/15PSI
(bi-directional ranges available)
Compensated Range: 10° to 50°C
Adjustments: Offset, 60% of FSO minimum
Media: Non-corrosive, non-ionic gases
Operating Humidity: 90% RH non-condensing
Operating Temp: -25° to 70°C
Input Supply: 12-24 VDC
Supply Current: <10mA
Load Resistance: 2KΩ minimum
Output Signal: 1-5VDC, 1-6VDC, 1-10VDC**
(call for custom outputs)
Electrical Connections: 0.025” square pins on 0.1” centers (5) – Board-Mountable***
Pressure Connections: Barbed fitting for 1/8” ID tubing
Dimensions: Approx. 1.50” x 1.35” x 0.9” (3.81cm x 3.43cm x 2.29cm)

* Includes non-linearity hysteresis and non-repeatability at a fixed temperature
** 18-24VDC input required for 1-10VDC output
*** Direct-to-board solder connection and optional cable available upon request

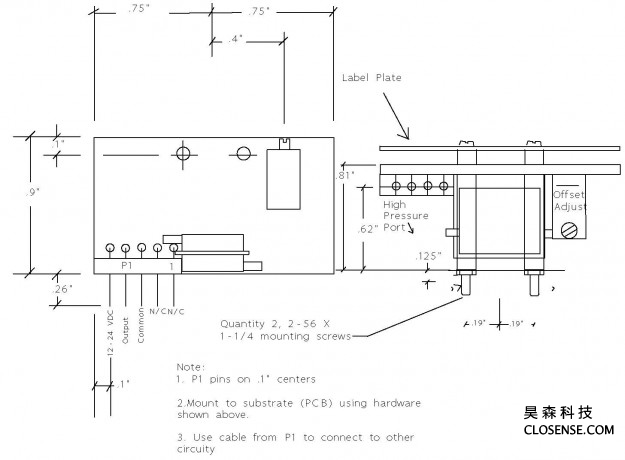

Package Drawing

typical order number consists of the model number, pressure range, pressure unit, output and mounting connection.

Model Type Output Signal FSO Pressure Range Calibration Pressure
855 D = Differential or Gage* 0…..1 to 5 volts 0…..0.25”WC to 5”WC Customer designated exact FSO
1…..1 to 6 volts 1…..>5”WC to 13” WC
2…..1 to 10 volts** 2…..>0.5PSI to 1PSI
5…..Custom Output 3…..>1PSI to 5PSI
  4…..>5PSI to 15PSI

Example: 855D 5” 12D 0 (Model number 855, differential or gage type unit, pressure range of 0-5” WC, output signal of 1-5 VDC)

* With a gage application, one of the two ports is vented to atmosphere
** Requires 18-24 VDC input

Note: This unit is not designed to support any capacitive load on the output. Please contact Controller Sensors LLC for additional installation guidance
